SendableSensorData Struct Reference

Declares one telemetry "stream" to include in packets. More...

#include <Telemetry.h>

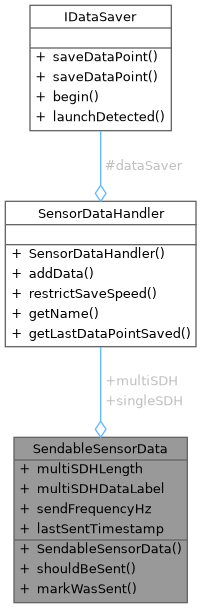

Collaboration diagram for SendableSensorData:

Public Member Functions
	SendableSensorData (SensorDataHandler *sdh, std::uint16_t sendFrequencyHz)
	Create a single SDH stream.
template<std::size_t M>
	SendableSensorData (const std::array< SensorDataHandler *, M > &sdhList, std::uint8_t label, std::uint16_t sendFrequencyHz)
	Create a multi SDH stream from a std::array.
bool	shouldBeSent (std::uint32_t now) const
	Return true if enough time has elapsed such that this stream wants to be sent again.
void	markWasSent (std::uint32_t now)
	Update internal state after sending.
bool	isSingle () const
	Convenience: true if configured as a single SDH stream.
bool	isMulti () const
	Convenience: true if configured as a multi SDH stream.

Public Attributes
SensorDataHandler *	singleSDH
SensorDataHandler *const *	multiSDH
const std::size_t	multiSDHLength
std::uint8_t	multiSDHDataLabel
std::uint16_t	periodMs
std::uint32_t	lastSentTimestamp

Detailed Description

Declares one telemetry "stream" to include in packets.

A stream can be either:

• single SDH: write the SDH name followed by its float value
• multi SDH group: write a group label followed by N float values

This type does not own any SensorDataHandler objects. Pointers must remain valid while Telemetry uses them.

For multi groups, you can provide either:

• raw pointer + count (most general)
• std::array (preferred when size is fixed at compile time)

Definition at line 105 of file Telemetry.h.

Constructor & Destructor Documentation

SendableSensorData() [1/2]

SendableSensorData::SendableSensorData ( SensorDataHandler * sdh, std::uint16_t sendFrequencyHz )

inline

Create a single SDH stream.

Parameters

sdh	SensorDataHandler to send (non-owning).
sendFrequencyHz	Desired send rate in Hz.

Definition at line 135 of file Telemetry.h.

SendableSensorData() [2/2]

template<std::size_t M>

SendableSensorData::SendableSensorData ( const std::array< SensorDataHandler *, M > & sdhList, std::uint8_t label, std::uint16_t sendFrequencyHz )

inline

Create a multi SDH stream from a std::array.

This is convenient when the group size is fixed at compile time. The std::array passed in must outlive this SendableSensorData object.

Definition at line 150 of file Telemetry.h.

Member Function Documentation

isMulti()

bool SendableSensorData::isMulti ( ) const

inline

Convenience: true if configured as a multi SDH stream.

Definition at line 178 of file Telemetry.h.

isSingle()

bool SendableSensorData::isSingle ( ) const

inline

Convenience: true if configured as a single SDH stream.

Definition at line 175 of file Telemetry.h.

markWasSent()

void SendableSensorData::markWasSent ( std::uint32_t now )

inline

Update internal state after sending.

Definition at line 170 of file Telemetry.h.

shouldBeSent()

bool SendableSensorData::shouldBeSent ( std::uint32_t now ) const

inline

Return true if enough time has elapsed such that this stream wants to be sent again.

Definition at line 163 of file Telemetry.h.

Member Data Documentation

lastSentTimestamp

std::uint32_t SendableSensorData::lastSentTimestamp

Last send time in ms (same time base as tick()).

Definition at line 128 of file Telemetry.h.

multiSDH

SensorDataHandler* const* SendableSensorData::multiSDH

Multi-value group. Pointer to an external array of SDHs.

Definition at line 112 of file Telemetry.h.

multiSDHDataLabel

std::uint8_t SendableSensorData::multiSDHDataLabel

Label written once before the multi SDH values.

Definition at line 120 of file Telemetry.h.

multiSDHLength

const std::size_t SendableSensorData::multiSDHLength

Length of multiSDH array.

Definition at line 117 of file Telemetry.h.

periodMs

std::uint16_t SendableSensorData::periodMs

Minimum time between sends for this stream.

Definition at line 125 of file Telemetry.h.

singleSDH

SensorDataHandler* SendableSensorData::singleSDH

Single-value stream. If non-null, this stream will send this SDH.

Definition at line 109 of file Telemetry.h.

---

The documentation for this struct was generated from the following file:

• Telemetry.h
