DataSaverBigSD Class Reference

Buffered CSV writer targeting large SD cards via SdFat. More...

#include <DataSaverBigSD.h>

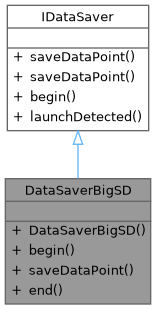

Inheritance diagram for DataSaverBigSD:

Collaboration diagram for DataSaverBigSD:

Public Member Functions
	DataSaverBigSD (uint8_t csPin=5)
bool	begin ()
	Initialize the SD card and open a streaming file. Returns true on success.
int	saveDataPoint (const DataPoint &dataPoint, uint8_t name) override
	Buffer a CSV line (timestamp,name,value) and flush in batches.
void	end ()
	Flush pending bytes and close the file.
Public Member Functions inherited from IDataSaver
virtual int	saveDataPoint (float data, uint32_t timestamp_ms, uint8_t name) final
	Convenience overload to construct and save a data point.
virtual void	launchDetected (uint32_t launchTimestamp_ms)
	Notification that launch has been detected.

Detailed Description

Buffered CSV writer targeting large SD cards via SdFat.

Note

When to use: high-volume logging to removable media where batched writes and periodic syncs reduce wear and latency.

Definition at line 29 of file DataSaverBigSD.h.

Constructor & Destructor Documentation

DataSaverBigSD()

DataSaverBigSD::DataSaverBigSD ( uint8_t csPin = 5 )

explicit

Definition at line 8 of file DataSaverBigSD.cpp.

Member Function Documentation

begin()

bool DataSaverBigSD::begin ( )

virtual

Initialize the SD card and open a streaming file. Returns true on success.

Note

When to use: during setup before any calls to saveDataPoint.

Reimplemented from IDataSaver.

Definition at line 11 of file DataSaverBigSD.cpp.

end()

void DataSaverBigSD::end

(

)

Flush pending bytes and close the file.

Note

When to use: before power-off or media removal to avoid loss.

Definition at line 96 of file DataSaverBigSD.cpp.

saveDataPoint()

int DataSaverBigSD::saveDataPoint ( const DataPoint & dataPoint, uint8_t name )

overridevirtual

Buffer a CSV line (timestamp,name,value) and flush in batches.

Parameters

dataPoint	Timestamped value to log.
name	8-bit channel identifier written in the CSV line.

Note

When to use: routine logging path once begin() succeeds.

Implements IDataSaver.

Definition at line 39 of file DataSaverBigSD.cpp.

---

The documentation for this class was generated from the following files:

• DataSaverBigSD.h
• DataSaverBigSD.cpp
